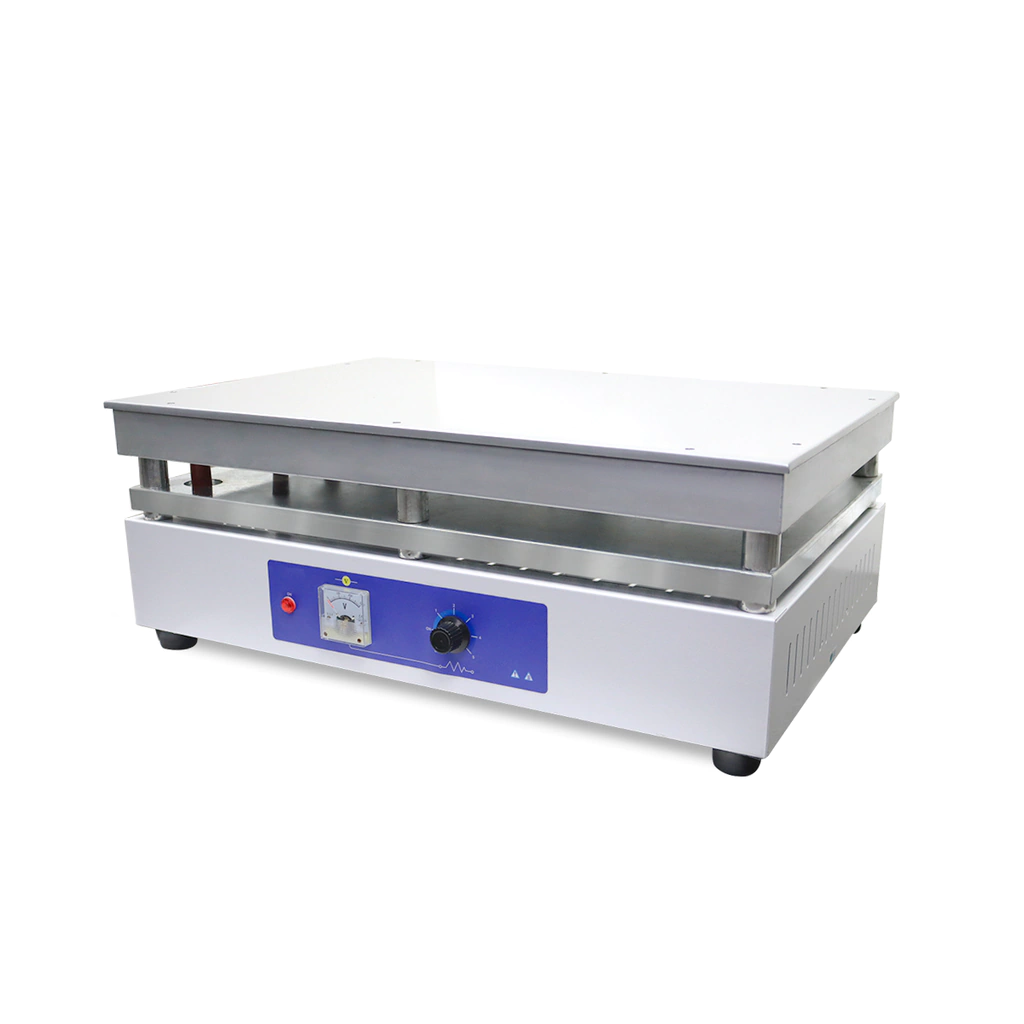

The analog hot plate provides a large solid-iron surface for heating compatible vessels and materials at working temperatures up to 300°C. The line includes 40x28cm and 60x40cm platforms, allowing the heating area to be selected for the workspace and workload.
Characteristics
- Solid-iron platform with heat-resistant coating;
- Steel housing with electrostatic epoxy coating;
- Nickel-chromium wire heating element mounted in refractory material;
- Analog electronic power control from 0 to 100%.
Applications
- Heating vessels and samples on the bench;
- Drying and heating compatible materials;
- Laboratory routines requiring a large heated surface.
Technical Specifications
- Working temperature: 20°C to 300°C;
- Control: analog electronic power adjustment;
- Voltage: 220V;
- Frequency: 50/60Hz;
| Platform | Power | Model |
|---|
| 40x28cm | 1.5kW | LGI-HP-1.5 |
| 60x40cm | 3kW | LGI-HP-3 |
Includes
- 1x Hot plate in the selected size;
- 1x Power cord;
- 1x Instruction manual;
- 1x One-year warranty certificate.
Frequently Asked Questions
What is the analog hot plate used for?
It heats compatible vessels and materials on a large flat surface.
What is the maximum working temperature?
The indicated working range is 20°C to 300°C.
How is heating adjusted?
Heating is controlled by an analog electronic power attenuator with a 0 to 100% reference scale.
Which platform sizes are available?
Versions include 40x28cm at 1.5kW and 60x40cm at 3kW.
How can companies and institutions purchase the analog hot plate from LojaLab and request a formal quotation?
Companies, laboratories, educational institutions and research organizations can purchase through LojaLab. For recurring purchases, internal approval processes, research funding, public procurement or formal quotation requirements, contact the sales team with the company or institution details, quantities and order requirements.
